Retrospec

Abbot Rev Commuter Electric Bike Step Thru Condition New eBike UL 2849 Certified

Regular price $1,799.00 USD
Regular price Sale price $1,799.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Color

Abbot Rev Commuter Electric Bike - Step Through Condition New eBike 16 In Frame

Colorado Resident?  Instant $450 Rebate on this eBike available.

Specification
FRAMESET
  • Frame Abbot 6061 hydroformed aluminum with integrated downtube battery and replaceable derailleur hanger.
  • Fork ZOOM with 65mm of travel, preload adjustment and 15mm thru axle
WHEELSET
  • Hubs Aluminum 15mm Thru-Axle, 36 hole
  • Spokes 13G with brass nipples
  • Tires 27.5x2.4" Commuter with puncture protection
  • Front Hub Aluminum 15mm Thru-Axle, 36 hole
E-POWER SYSTEM
  • Motor 500W rear hub
  • Battery 720Wh/48VLG 21700 cells; Charge on or off bike
  • DisplayCenter mounted color LCD
  • Assist Levels1-6 PAS, Throttle and walk-mode; Class 2/3
  • Range Up to 72 Miles
  • Sensor Torque
DRIVETRAIN
  • Crankset3-Piece aluminum
  • Chain KMC 8 speed
  • BBsealed cartridge
  • Freewheel/Cassette Shimano 8 speed 11-34T
COMPONENTS
  • Headset: 1-1/8” semi-integrated threadedless
  • Front Brakes Tektro Hydraulic with 180mm e-bike specific rotors and semi-metallic pads
  • Rear Brakes Tektro Hydraulic with 180mm e-bike specific rotors and semi-metallic pads
  • Handlebars Alloy Comfort Rise Bar
  • Grips Lock-on comfort grips
  • Stem Die-Cast alloy. 31.8mm clamp
  • Saddle Retrospec Sport Comfort saddle
  • Seat post Aluminum 30.9mm diameter, 400mm length
  • Seat post Clamp Aluminum quick release
  • Pedals Aluminum platform with non-slip tread.
EXTRAS
  • Fenders Full-Coverage
  • Kickstand Aluminum chainstay mounted, 40MM bolt pattern
  • Rear Carrier Alloy with Thule Window
  • Taillight Integrated with brake light function
  • Headlight Integrated front
  • Recommended Weight Limit350lb
  • 28mph

    Top assisted speed

    Up to 72-Mile Range

    Highest range Rev e-bike

    6 Pedal Assist Levels

    Propel while pedaling

    Torque Sensor

    Intuitive, smooth pedal assistance

    500W

    Planetary geared hub motor

    48V/720Wh

    LG21700 Li-ion battery

    27.5x2.4" Commuter Tires

    With puncture protection

    Tektro Hydraulic Disc Brakes

    Consistent & confident stopping power

    65 mm Travel Suspension Fork

    Absorbs impact
    Features

    Hop On With Ease
    Getting on and off your bike has never been easier, thanks to an accessible step through frame shape that also allows for a comfortable, more upright riding position.

    Easy Access to Controls
    The handlebar-mounted button pod controls everything, from the throttle, to the lights, to walk mode, pedal assistance, & more. Keep track of it all with your eyes on the road using the easy-to-read, center-mounted color display.

    Commute-Ready
    Haul everything you need to bring to and fro with the rear carrier, and large-volume 27.5x2.4” commuter tires with puncture protection offer more stability, making for a better and smoother commute.

    Choose Your Boost
    You’re in total control of your ride. With a convenient push-to-go throttle and 6 levels of Pedal Assist, you can choose how much or how little assistance you want and ride up to 28mph.

    On- or Off-Bike Charging
    This e-bike’s integrated battery can be charged both on and off the bike. LG 21700 cells enhance the battery capacity so it can store more energy and offer up to 72 miles of range when fully charged.

    Quiet, Consistent, Confident Braking
    Tektro hydraulic disc brakes with upgraded semi-metallic pads and 180mm e-bike specific rotors offer reliable stopping power in any weather, so you can brake confidently.

    Stay Seen, Stay Safe
    Integrated front and rear lights illuminate your path and help keep you safe while riding in low light. The tail light’s brake indicator further improves the bike’s visibility.

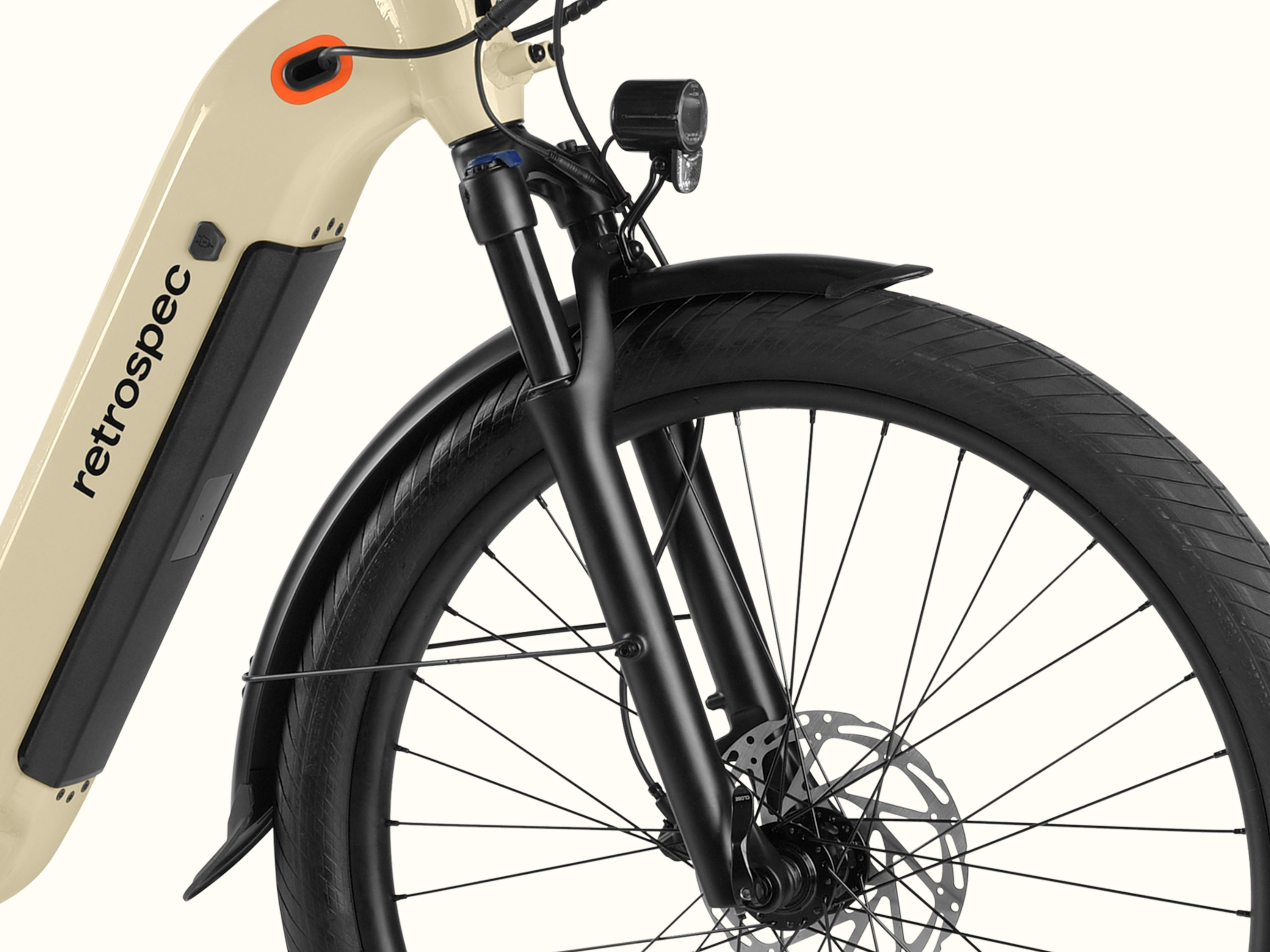

    Shock-Absorbent
    This e-bike is equipped with a front suspension fork with 65mm travel and thru axle for optimal comfort, control, and safety on bumpy roads.

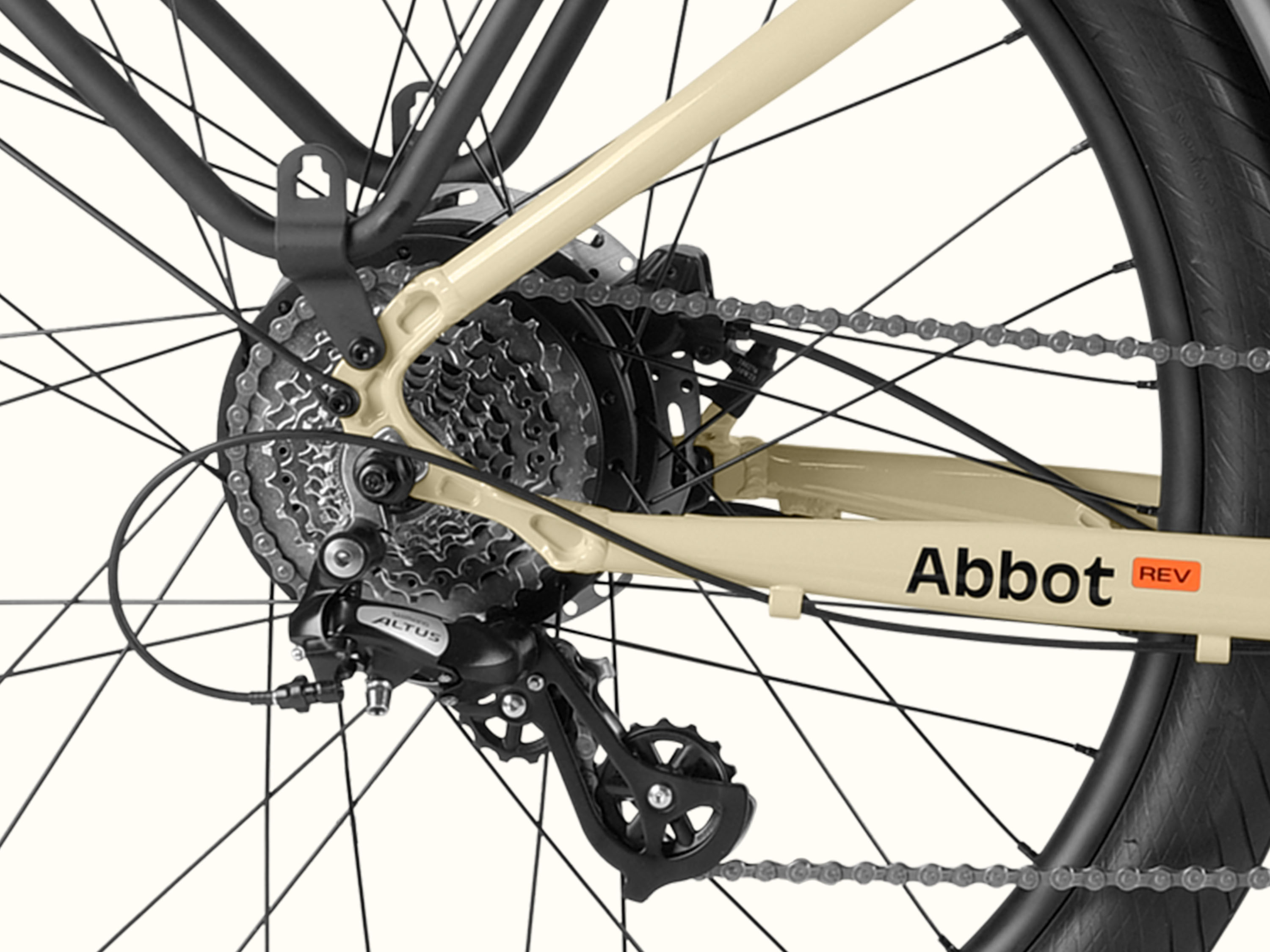

    Tackle Inclines or Cruise Flats
    With a robust, versatile Shimano 8-speed drivetrain.

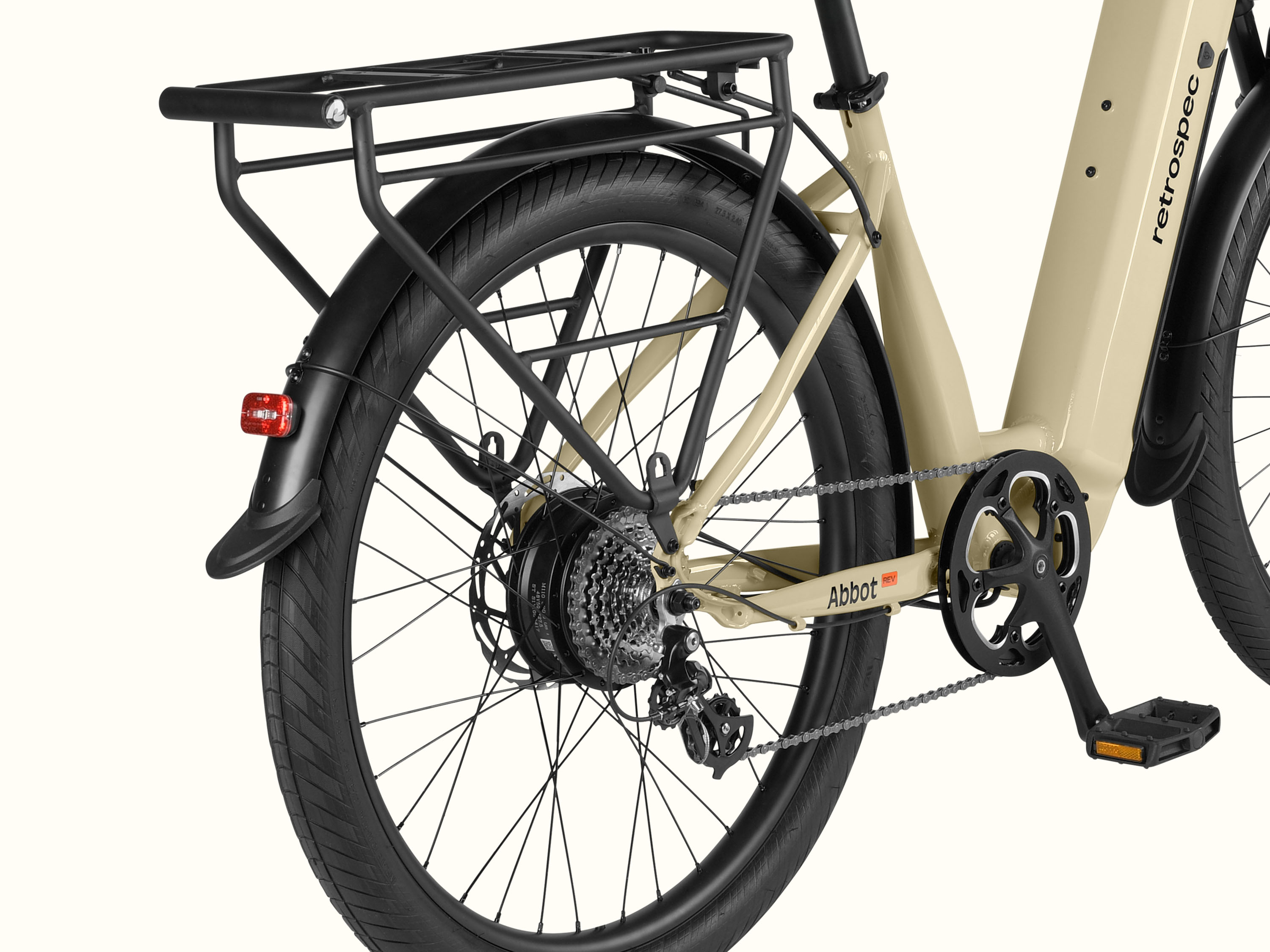

    Easy-Change Rear Wheel Removal System
    Retrospec’s proprietary easy-change system allows you to easily remove and replace the rear wheel whenever you need to change a tube, fix a puncture, or take a look under the metaphorical hood.
    All-in-One Tool Included
    This e-bike comes with all the tools you need for assembly and maintenance – all conveniently folded up in one portable, multi-functional tool that fits in your pocket for tune-ups on-the-go.


    Best for pavement
