Koa Rev 2 Fat Tire Electric Bikes New eBike Step Over UL 2849 Certified
Regular price
$1,399.00 USD
Regular price
Sale price
$1,399.00 USD
Unit price
per
Retrospec Koa Rev 2 Fat Tire Electric Bike New E-Bikes
Colorado Resident? Instant $450 Rebate on this eBike available.
28mph Top Speed
Class 2/3 e-bike
Up to 52-Mile Range
Highest range Rev e-bike
Intuitive, smooth pedal assistance
Tektro Hydraulic Disc Brakes
Consistent & confident stopping power
48V/720Wh
LG Li-ion battery
500W
Planetary geared hub motor
4" Tires, 80mm Fork Travel
Fat tires and suspension cushion any terrain
UL2849 Certified
Safety tested and approved by a UL accredited lab
Features
Best for all terrain
- SPECIFICATIONS
- SIZING
- ASSEMBLY INSTRUCTIONS
- OWNER'S MANUAL
Specification
FRAMESET
- Sizes 16.5" Step Through
- Frame Koa 6061 hydroformed aluminum with, integrated downtube battery and replacable derailleur hanger.
- Fork ZOOM with 80mm of travle, preload adjustment and lockout.
WHEELSET
- Rims 26" single-wall aluminum 36H, for disc brake
- Hubs Aluminum bolt-on with 17mm axle nuts. 36 hole
- Spokes13G with brass nipples
- Tires 26x4" Fat MTB with puncture protection.
E-POWER SYSTEM
- Range 52+ Miles per Charge
- Assist Levels1-6 PAS, Throttle and walk-mode; Class 2/3
- Battery 720Wh/48VLG 21700 cells; Charge on or off bike

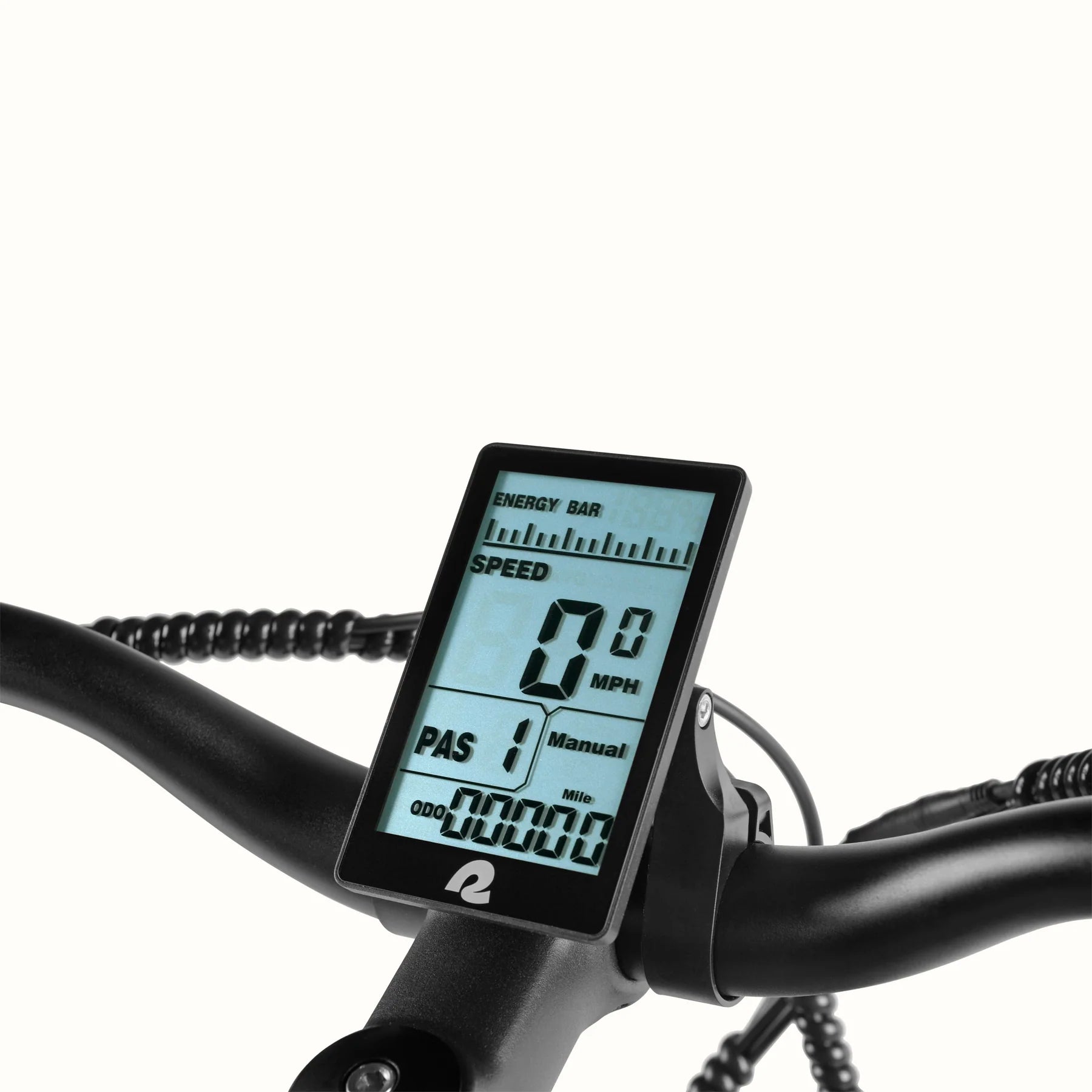

- Display Center mounted black and white LCD
- Motor750W rear hub
- Sensor Cadence
- Charger 48V/2A
DRIVETRAIN
- Rear Derailleur 7 speed Shimano Tourney
- 7 Speed Shimano Tourney
- Crankset 3-Piece aluminum
- Chain KMC 7 speed
- BB Sealed cartridge
- Freewheel/Casette Shimano 8 speed 11-34T
COMPONENTS
- Headset 1-1/8” semi-integrated threadedless
- Brakes Tektro Hydraulic with 180mm e-bike specific rotors and semi-metalic pads
- Handlebars Alloy 31.8mm clamp, 700mm width
- Grips Lock-on comfort grips.
- Stem Die-Cast alloy. 31.8mm clamp
- Saddle Retrospec Sport Comfort saddle
- Seatpost Aluminum 30.9mm diameter, 400mm length
- Seatpost ClampAluminum quick release
- Pedals Aluminum plateform with non-slip tread.
EXTRAS
- KickstandAluminum chainstay mounted, 40MM bolt pattern
- LightsIntegrated front and rear lights w/brake function
- FendersFull coverage plastic
- Recommended Weight Limit350lbs
